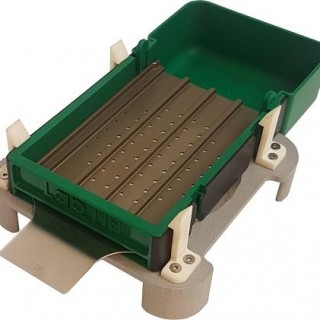

Don’t settle for slow, repetitive and inefficient methods of dispensing/plating seeds in Petri Dish plates. Use the Petri Dish Seed Dispenser from LabTIE to improve your consistency in dispensing while speeding up your process over 40 times.



Advantages:

​

• Accurate dispensing

• Dispensing in only 30 seconds

• Sterile dispensing

• Easy cleaning

• Exchangeable seed plates, “Different seed type? Just slide in a different seed plate”

• Custom made seed plates available

Due to its modular design with exchangeable metal seed plates it is used for all types and variations of seeds (0.2mm - 9.0mm).

The Seed Dispenser is perfect for dispensing difficult seeds that are; not pelleted, vary in size or fragile seeds. It exceeds current competitive systems in speed, accuracy, variety of seed types and especially ease of use.

LabTIE Seed Dispensers are mostly used for:

​

• Germination
• DNA extraction
• Seed Counting
• Vitality assays

Do you use a different grid/tube/tray or plate?

Related Products:

• 45 Tube Seed Dispenser
• 48-Well Seed Dispenser
• 96-Well Seed Dispenser
• 100-Well Tray Seed Dispenser
• Custom Made Seed Dispenser

 ​

​The first video shows how to use the Petri Dish (Blot) Seed Dispenser and the second video the Petri Dish (Agar) Seed Dispenser.

​

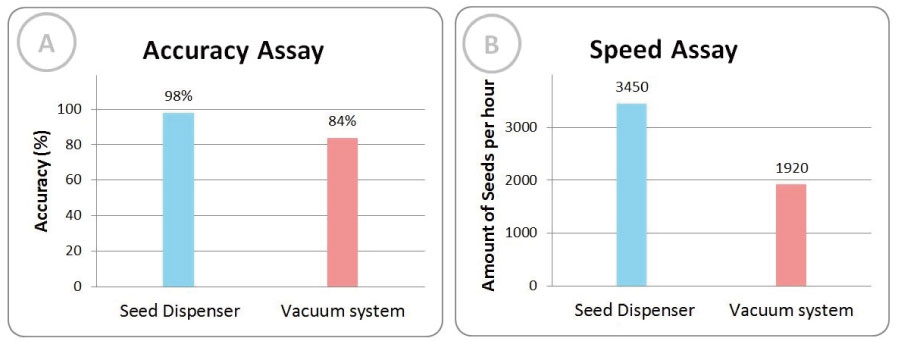

Figure 1. The LabTIE Seed Dispenser increases accuracy in seed dispensing compared to other methods and systems while speeding up your process.

A: The LabTIE Petri dish Seed Dispenser was used to dispense batches of 60 lettuce seeds, resulting in a 98% accuracy of a single seed per location/well. Compared to the use of a vacuum dispense system, over 10% of the dispensed seeds contained anomalies such as double or triple seeds per location (anomalies), or even empty wells.

B: The LabTIE Petri dish Seed Dispenser dispenses 3450 seeds per hour compared to 1920 seeds using the vacuum system. Although the dispense time is roughly the same for both systems (approx. 30 seconds per cycle) correcting the anomalies afterwards was more time consuming using the vacuum system. The LabTIE Seed Dispenser seemed to be 80% faster while being more accurate in dispensing 'difficult' seeds.

Technical Data

Features	Details
Compatibility	Dispense in 9cm/10cm round petri dishes or 10/12cm square petri dishes
Seed size and quantity	Round Petri dish: 0.2 mm - 9 mm Square Petri dish: 0.2 mm - 3.7 mm 1 or multiple seeds per well
Seed Types	All type of seeds such as: Tomato, lettuce, onion, brassica, flower seeds etc. Currently supporting over 40 seed types
Sterilization	70% EtOH (Not Autoclavable)
Product material types	ABS+PC, Nylon, RVS304, Alumide and 70/75 hard anodized aluminum alloy
Extension	Main Unit can also be adapted and used to dispense beads and powders
