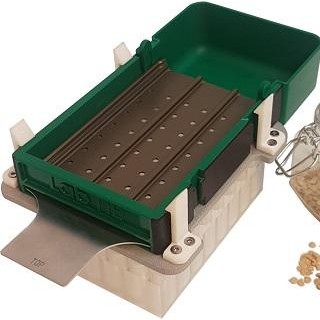

Don’t settle for slow, repetitive and inefficient methods of filling/weighing seeds in tubes. Use the 45 Tube Seed Dispenser from LabTIE to improve your consistency in dispensing while speeding up your process over 50 times.



Advantages:

​

• Accurate dispensing

• Dispensing in only 30 seconds

• Sterile dispensing

• Easy cleaning

• Exchangeable seed plates, “Different seed? Just slide in a different seed plate”

• Custom made seed plates available

Due to its modular design with exchangeable metal seed plates it is used for all types and variations of seeds (0.2mm - 9.0mm).

The Seed Dispenser is perfect for dispensing difficult seeds that are; not pelleted, vary in size or fragile seeds. It exceeds current competitive systems in speed, accuracy, variety of seed types and especially ease of use.

LabTIE Seed Dispensers are mostly used for: ​

• Germination
• DNA extraction
• Seed Counting
• Vitality assays

Do you use a different grid/tube/tray or plate?

Related Products:

• Petri Dish Seed Dispenser
• 48-Well Seed Dispenser
• 96-Well Seed Dispenser
• 100-Well Tray Seed Dispenser
• Custom Made Seed Dispenser

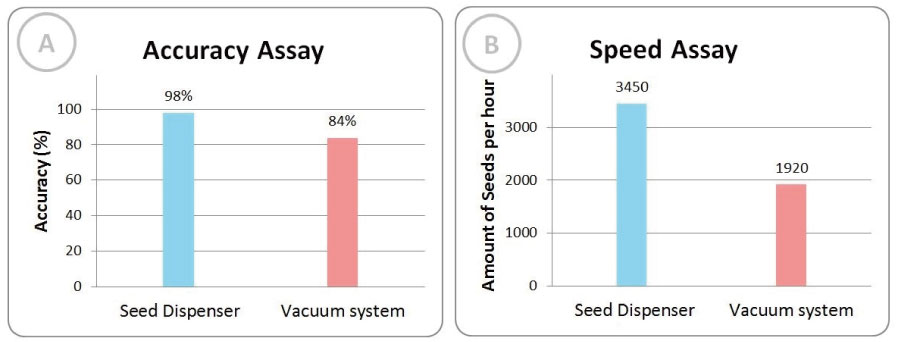

Figure 1. The LabTIE Seed Dispenser increases accuracy in seed dispensing compared to other methods and systems while speeding up your process.

A: The LabTIE Tube Seed Dispenser was used to dispense batches of 45 lettuce seeds, resulting in a 98% accuracy of a single seed per location/well. Compared to the use of a vacuum dispense system, over 10% of the dispensed seeds contained anomalies such as double or triple seeds per location (anomalies), or even empty wells.

B: The LabTIE Tube Seed Dispenser dispenses 3450 seeds per hour compared to 1920 seeds using the vacuum system. Although the dispense time is roughly the same for both systems (approx. 30 seconds per cycle) correcting the anomalies afterwards was more time consuming using the vacuum system. The LabTIE Seed Dispenser seemed to be 80% faster while being more accurate in dispensing 'difficult' seeds.

Technical Data

Features	Details
Compatibility	Dispense in 1.5 or 2mL screw cap tubes in LabTIE tube holder. Snap cap tubes can also be filled using a custom made dispenser, contact us to get more information on this article.
Seed size and quantity	0.2 mm - 4.7 mm, 1 or mulitple seeds per tube
Sterilization	70% EtOH (Not Autoclavable)
Product material types	ABS+PC, Nylon, RVS304, Alumide and 70/75 hard anodized aluminum alloy
Extension	Main Unit can also be adapted and used to dispense seeds and seeds
