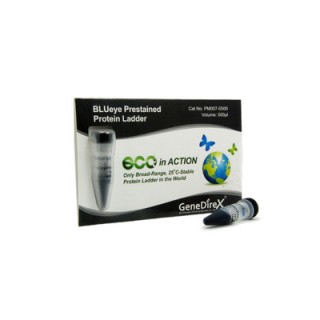

The BLUeye Prestained Protein Ladder is a three-color protein standard with 12 pre-stained proteins covering a wide range of molecular weights from 11 to 245 kDa. Proteins are covalently coupled with a blue chromophore except for two reference bands (one green and one red band at 25 kDa and 75 kDa respectively) when separated on SDS-PAGE (Tris-glycine buffer). The BLUeye Prestained Protein Ladder is designed for monitoring protein separation during SDS-polyacrylamide gel electrophoresis, verification of Western transfer efficiency on membranes (PVDF, nylon, or nitrocellulose) and for approximating the size of proteins. The ladder is supplied in gel loading buffer and is ready to use.

Guide for Molecular Weight Estimation (kDa)
Migration patterns of BLUeye Prestained Protein Ladder in different electrophoresis conditions are listed below :

• 3 μl or 5 μl per loading for clear visualization during electrophoresis on 15-well or 10-well mini-gel, respectively.
• 1.5~2.5 μl per well for general Western transferring.
• Apply more for thicker (> 1.5 mm) or larger gel.

Contents :
Approximately 0.1~0.4 mg/ml of each protein in the buffer (20 mM Tris-phosphate, pH 7.5 at 25°C), 2 % SDS, 0.2 mM Dithiothreitol, 3.6 M Urea, and 15 % (v/v) Glycerol).

Quality Control :
Under suggested conditions, BLUeye Prestained Protein Ladder resolves 12 major bands in 15% SDS-PAGE (Tris-glycine buffer) and after Western blotting to a nitrocellulose membrane.

Storage :
Stable for up to 2 weeks at 25°C.
Stable for up to 3 months at 4°C.

Stable for up to 24 months at -20°C.
