Don’t settle for slow, repetitive and inefficient methods of filling beads in 48-Well plates. Use the 48-Well Bead Dispenser from LabTIE to improve your consistency in dispensing while speeding up your process over 18 times.



Advantages:

​

• Filling a plate in only 8 seconds

• Sterile dispensing

• Accurate dispensing, <1% error rate

• Easy cleaning

• Exchangeable bead plates, “Different amounts of beads or bead sizes? Just slide in a different bead plate”

• Custom made bead plates available

Do you use a different grid/tube/tray or plate?

​Related Products:

​45 Tube Bead Dispenser

GC Vial Bead Dispenser
96-Well Starter Bead Dispenser
96-Well Bead Dispenser
384-Well Bead Dispenser

Custom Made Bead Dispenser

​This video shows how to use the 48-Well Bead Dispenser.

​​

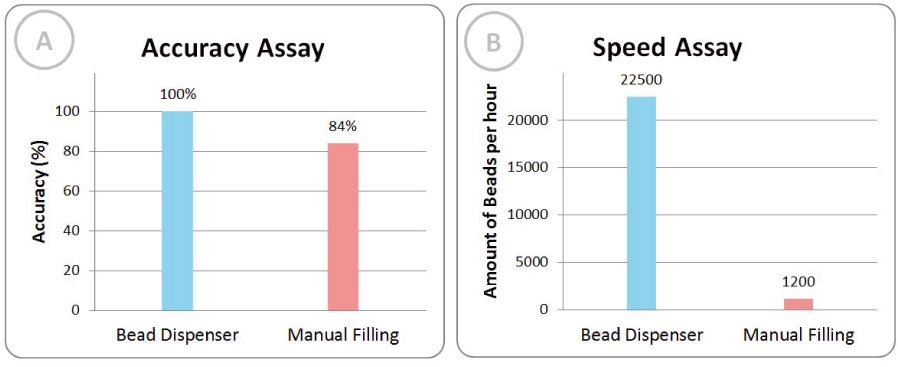

Figure 1. The 48-well Bead Dispenser allows clean and accurate Dispensing compared to manual filling, only 18 times faster.

A: The LabTIE 48-Well Bead Dispenser was used to fill 48-well plates and was compared to manual filling by hand using a tweezer. No anomalies were detected using the Dispenser, while over 10% of the manual filled wells contained an incorrect amount of beads (doubles or missing).

B: The LabTIE 48-Well Bead Dispenser fills 22.500 wells with beads compared to 1200 wells manually filled by hand in the same amount of time.

Technical Data

Features	Details
Compatibility	Dispense in microtiter or deepwell plates
Bead size	0.2 mm - 9.0 mm
Bead quantity	1 or multiple beads per well
Sterilization	70% EtOH (Not Autoclavable)
Product material types	ABS+PC, Nylon, RVS304, Alumide and 70/75 hard anodized aluminum alloy
Extension	Main Unit can also be adapted and used to dispense powders and seeds
